Elevator Traction Parts
Best in market High quality Traction Sheaves and Diverter Wheels

elevator

We at Bestomech are instrumental in offering our customers a broad variety of Best in Market High Quality Diverter wheels and

traction Sheaves.

Manufactured using high-grade metals, these products are designed strictly in compliance to international quality standards. Owing to the superior quality, high tensile strength and excellent performance, these products are highly demanded and appreciated among the customers. Additionally, we provide customization as per the exact specifications laid down by the customers.

Features

  • Precise bore and groove dimensions
  • Seamless finish
  • Excellent Strength & wear properties.
  • Durability
  • Low maintenance
  • Heavy Duty
  • Excellent performance

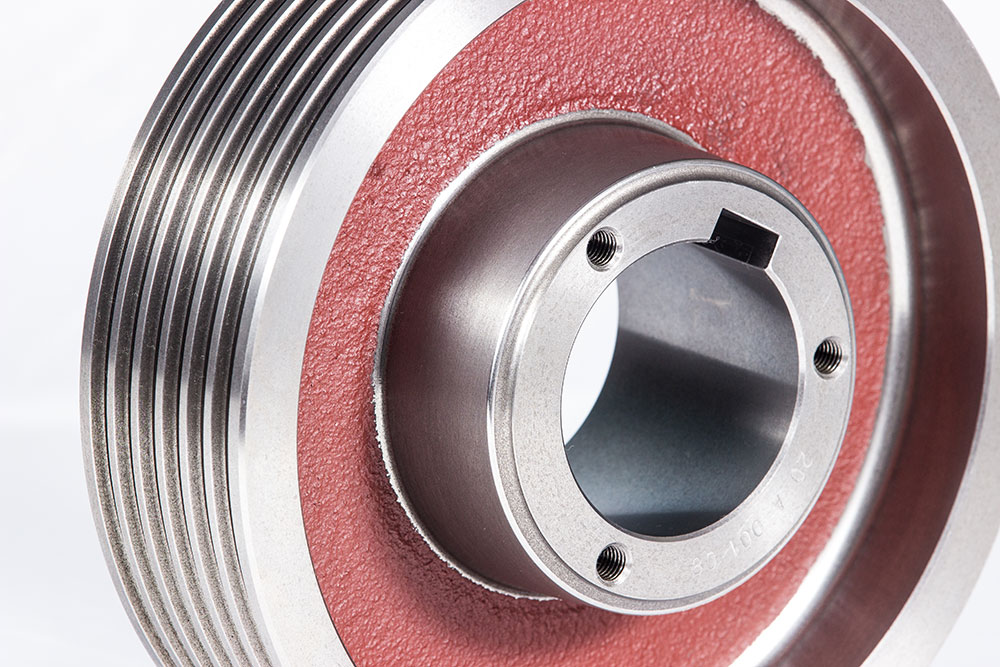

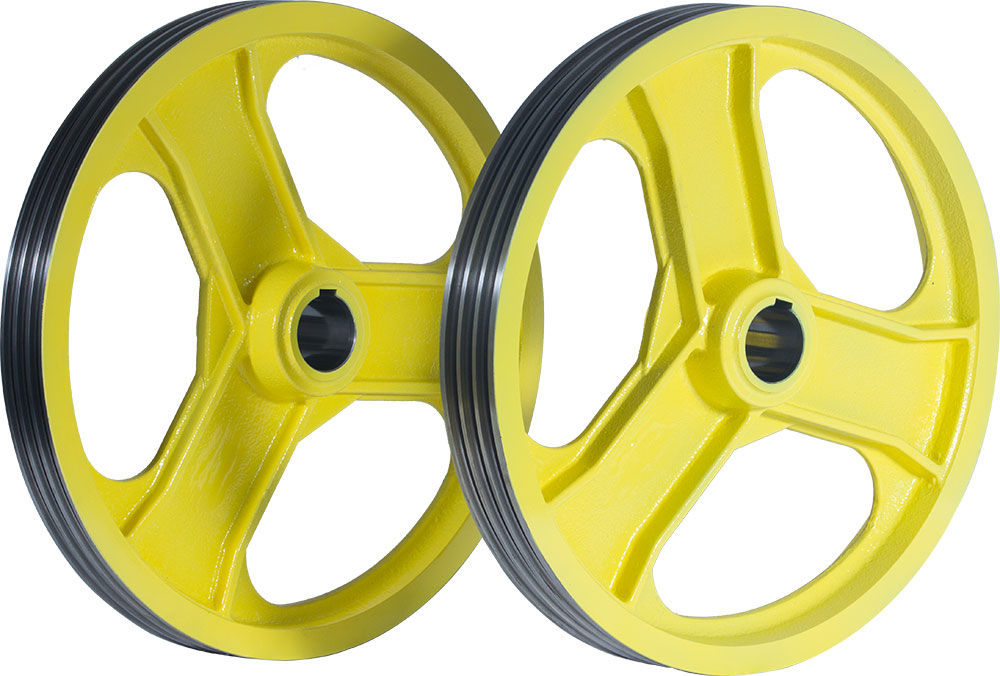

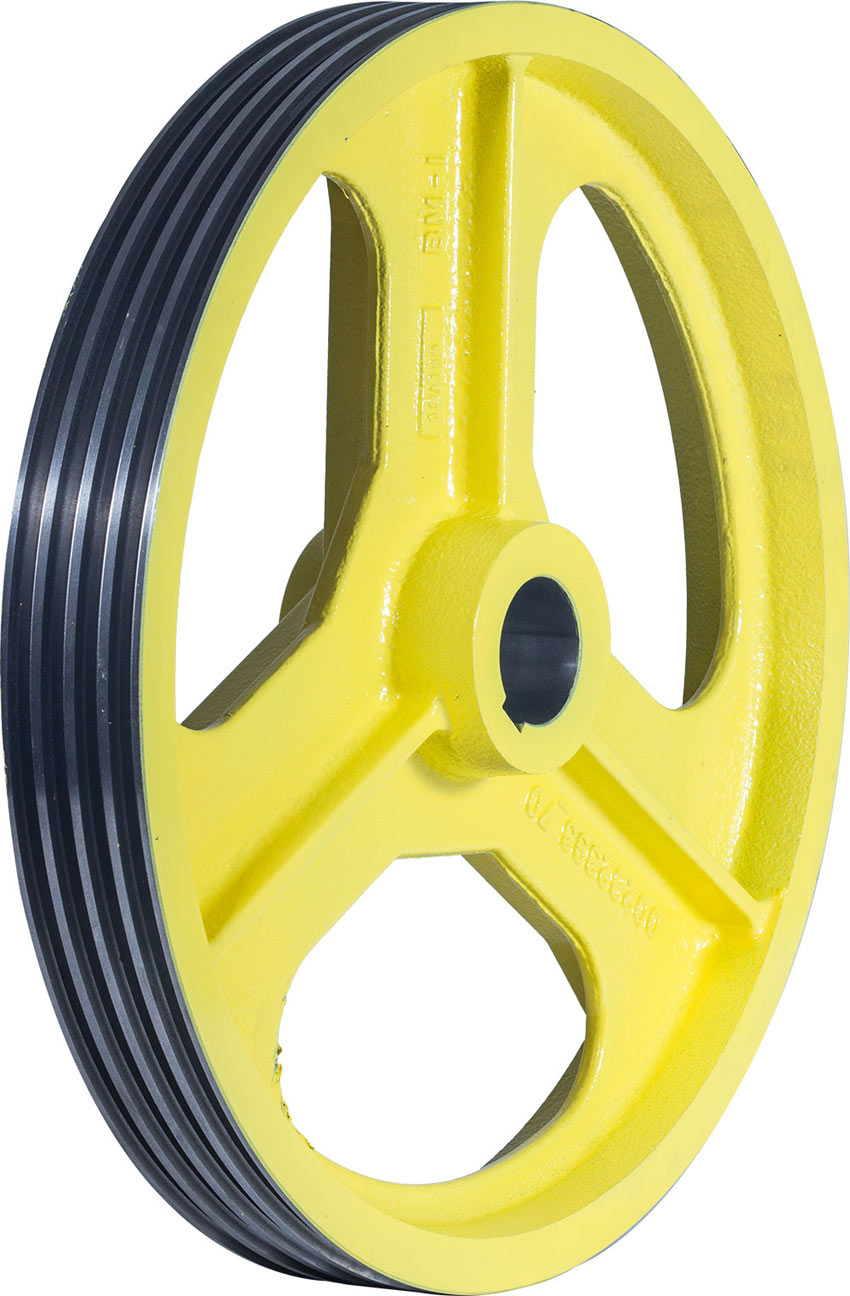

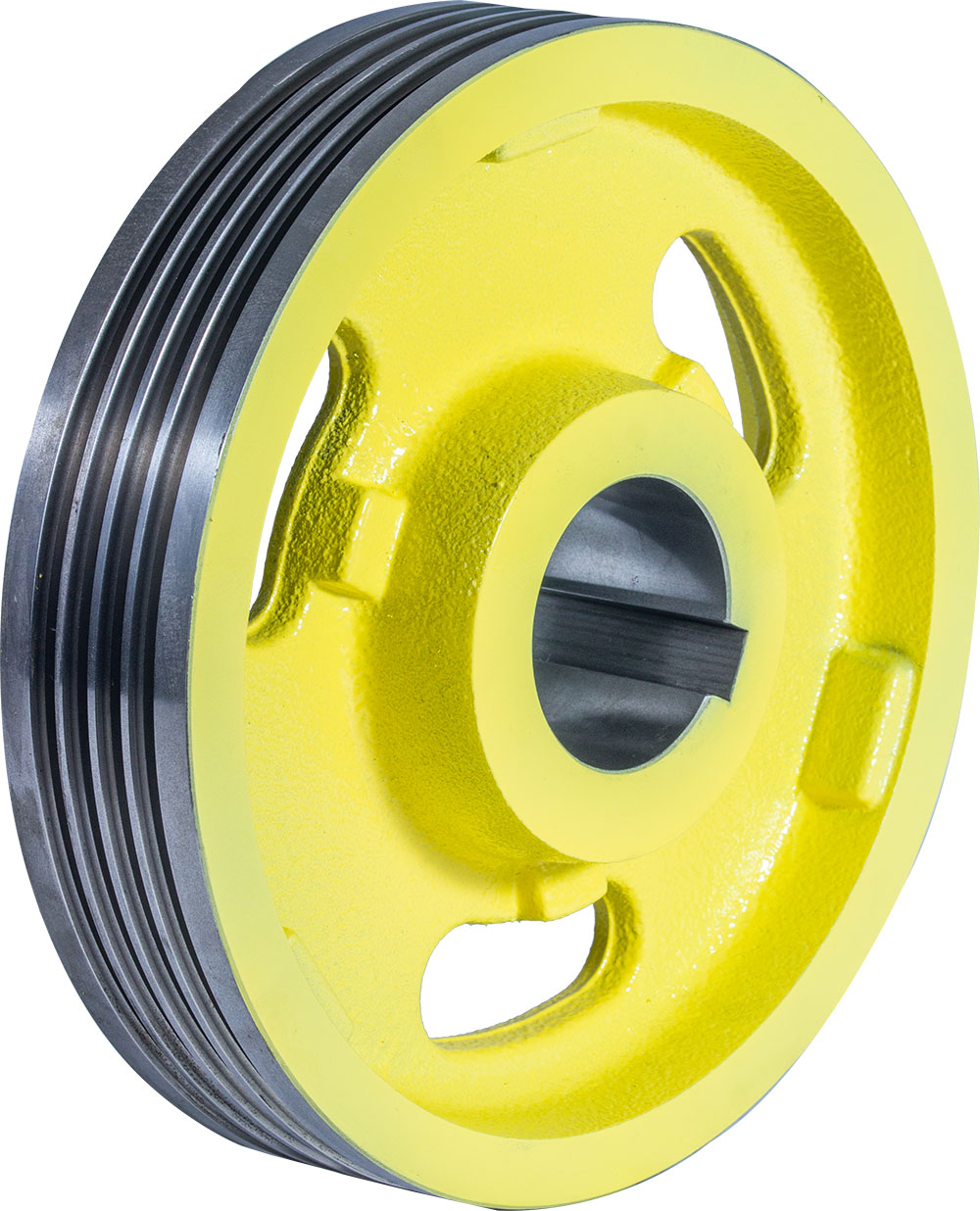

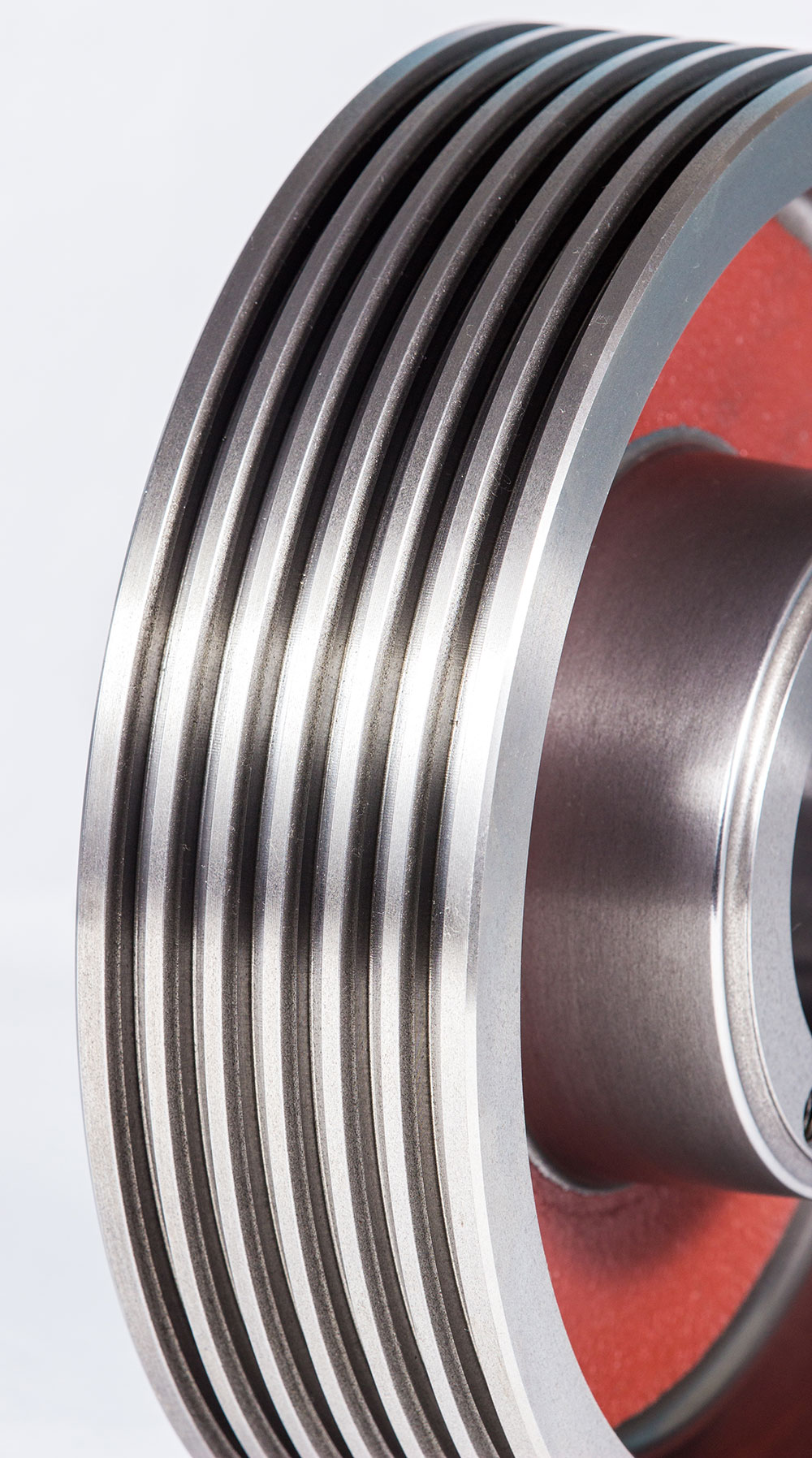

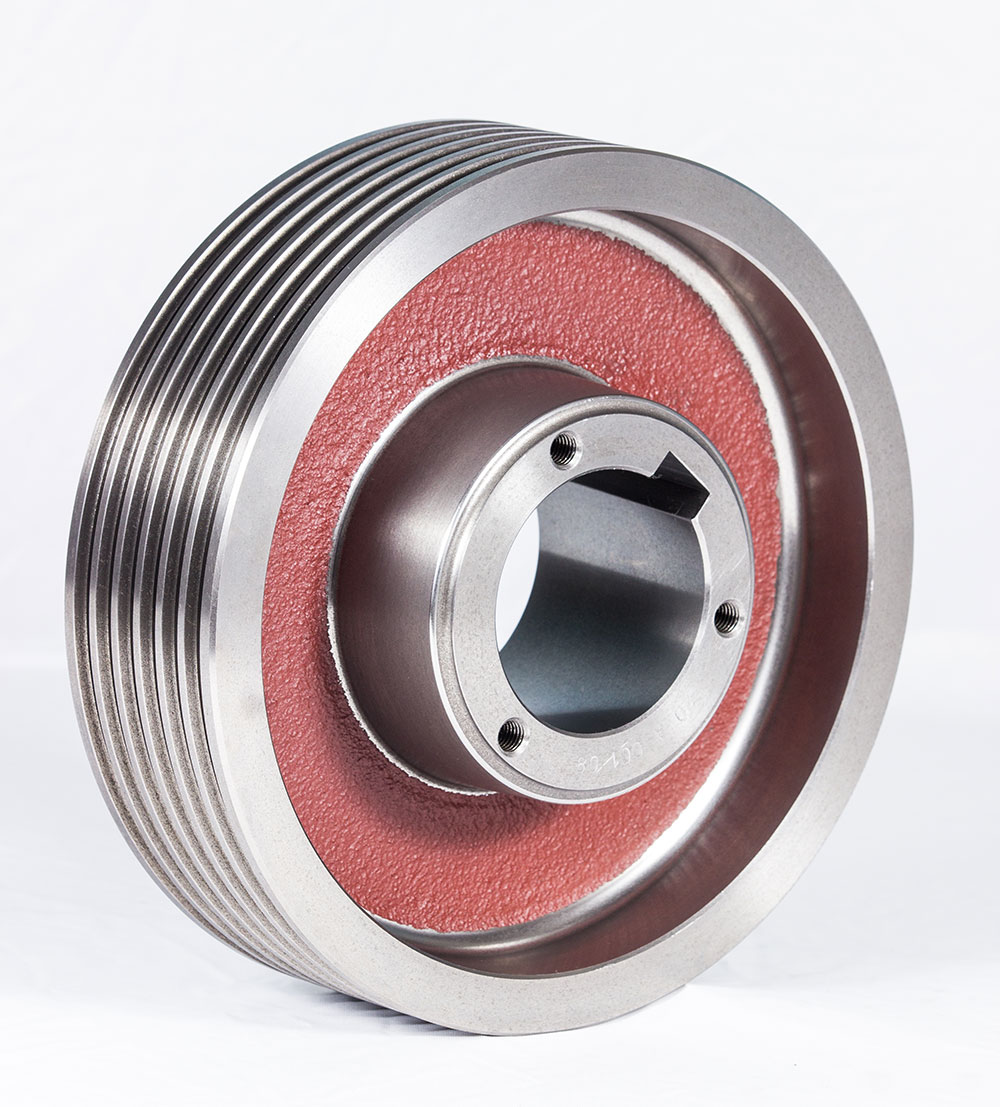

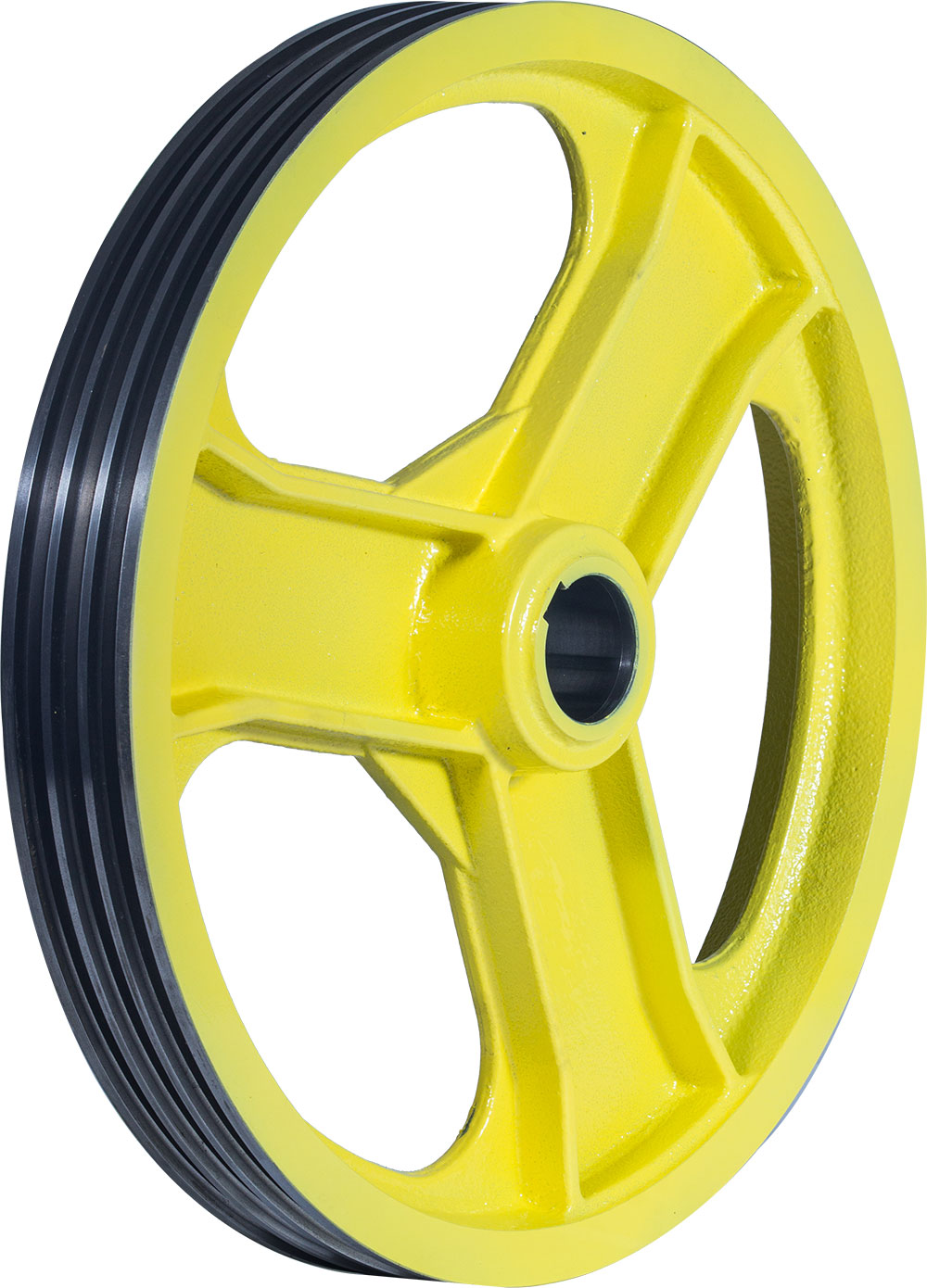

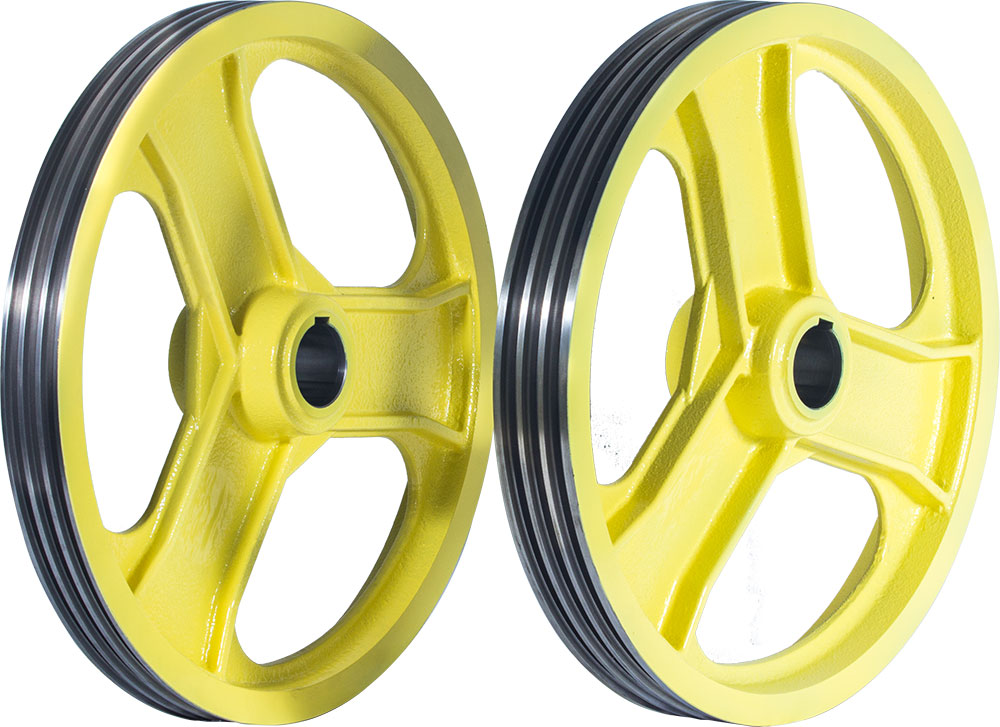

ELEVATOR - TRACTION SHEAVE



PART DESCRIPTION - TRACTION SHEAVE
OD WIDTH BALL DIA BORE SIZE PITCH in mm BORE FINISH MATERIAL GRADE
200 50 4G 6 80 10 1.6Ra SG 700/2
240 68 4G, 6G 6, 8 80 10, 12 1.6Ra SG 700/2
320 70 4G, 6G 8 80 11, 12 1.6Ra SG 700/2
420 68 3G, 4G 10, 13 60 16, 19 1.6Ra SG 700/2
520 54 3G 10 60 16 1.6Ra SG 700/2
520 68 3G, 4G 10, 13 60 16, 19 1.6Ra SG 700/2
520 83 4G 13 60 19 1.6Ra SG 700/2
550 68 3G, 4G, 5G 8, 10, 13 60 12, 20 1.6Ra SG 700/2
550 83 4G 12 60 18 1.6Ra SG 700/2
560 109 5G 13 95 19 1.6Ra SG 700/2

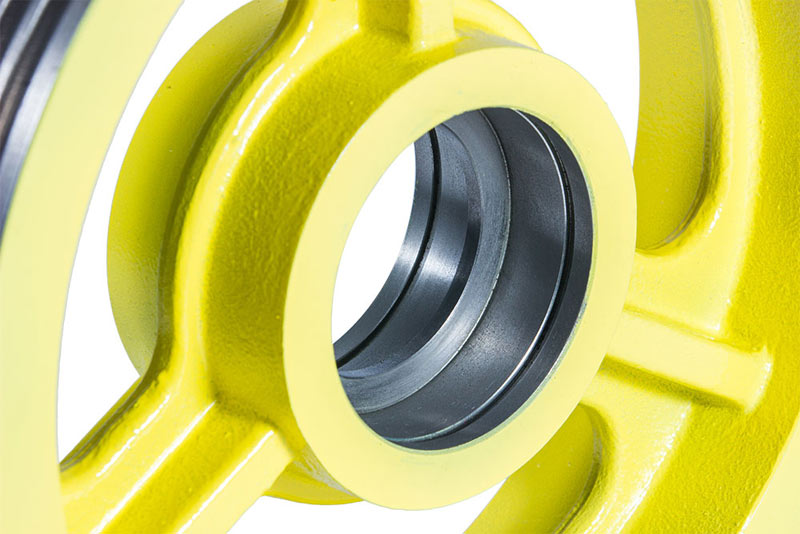

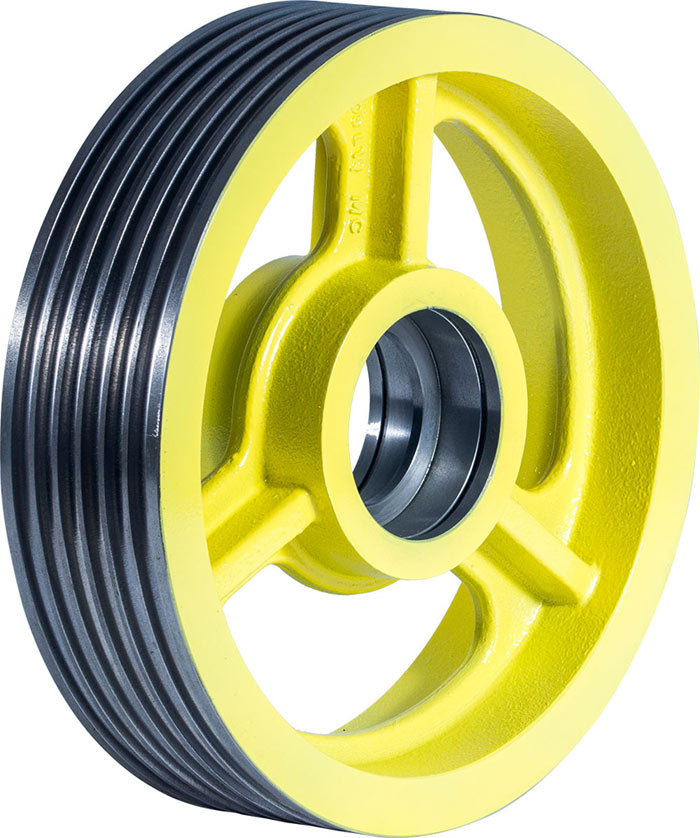

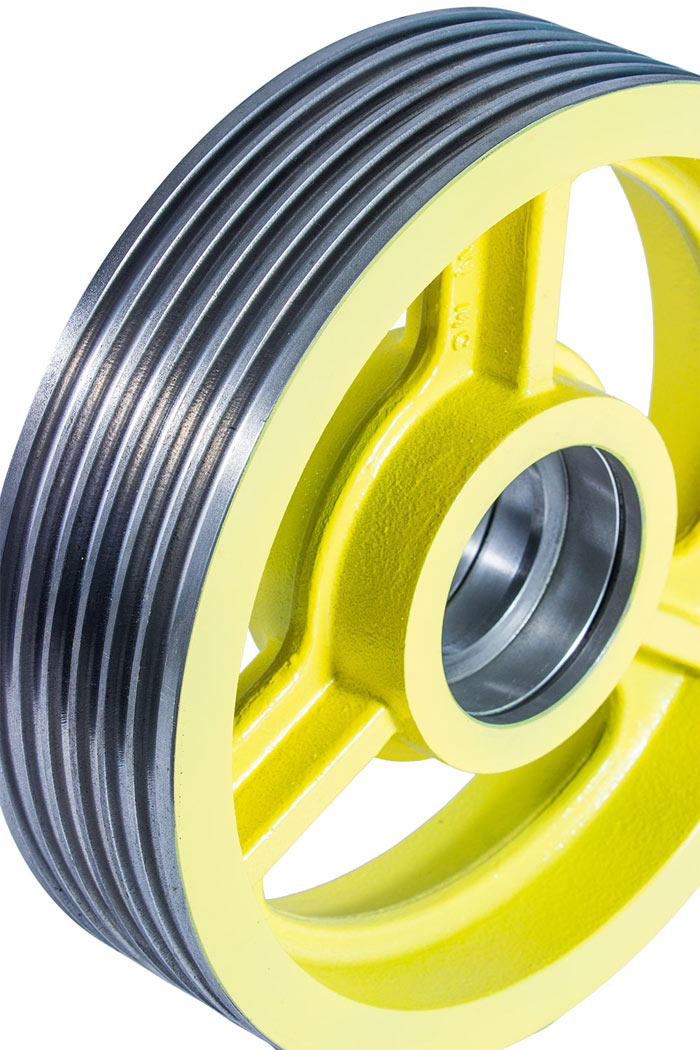

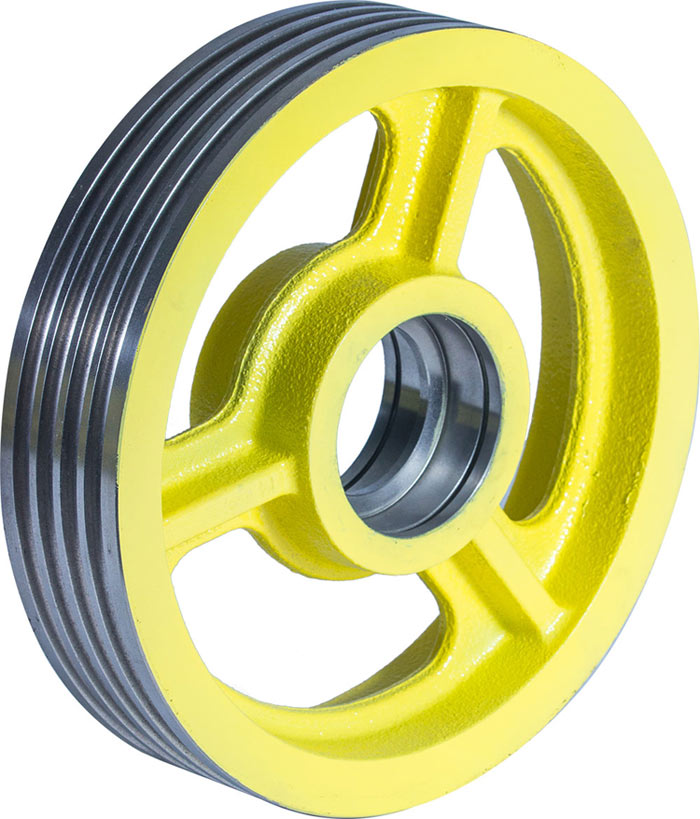

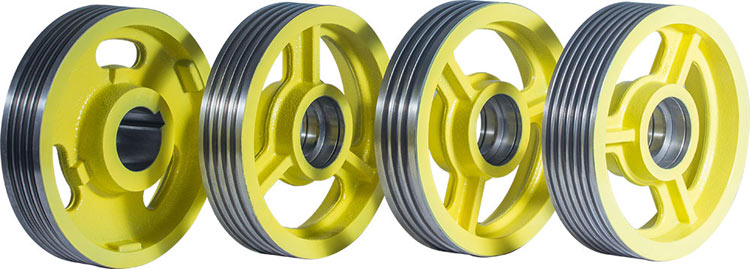

ELEVATOR - DIVERTER WHEEL



PART DESCRIPTION - DIVERTER WHEEL
OD WIDTH BALL DIA BORE SIZE PITCH in mm BORE FINISH MATERIAL GRADE
240 83 6G 8 90 12 1.6Ra FG 200
320 70 3G, 4G, 6G 8, 10, 13 90 11, 12, 16, 19 1.6Ra FG 200
320 83 6G 8 90 12 1.6Ra FG 200
320 108, 125 8G 8 90 12 1.6Ra FG 200
340 70 3G, 4G, 6G 8, 10, 13 90 11, 12, 16, 19 1.6Ra FG 200
340 83 6G 8 90 12 1.6Ra FG 200

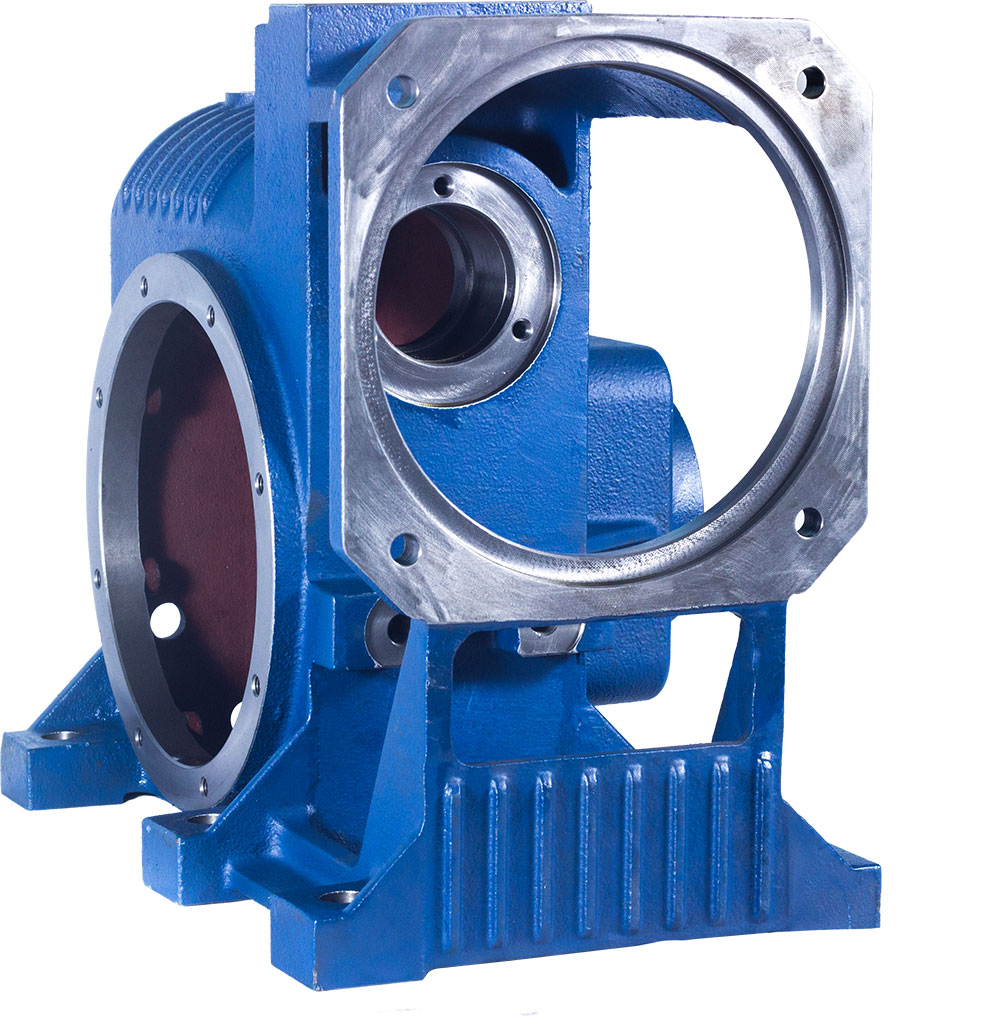

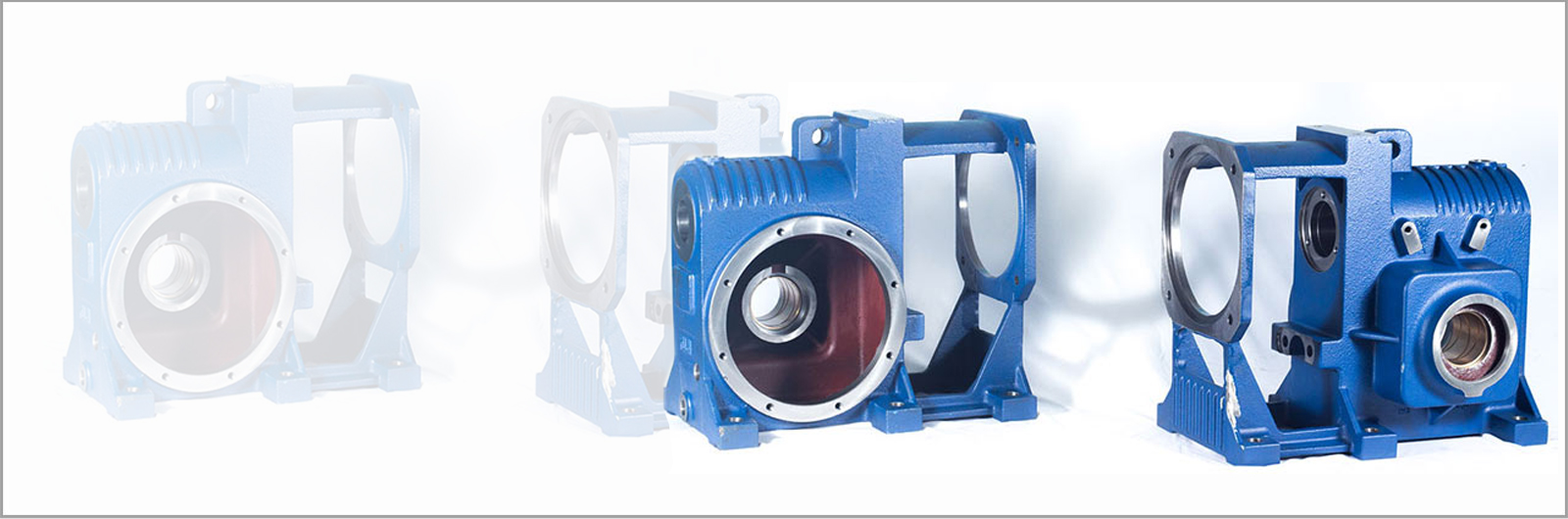

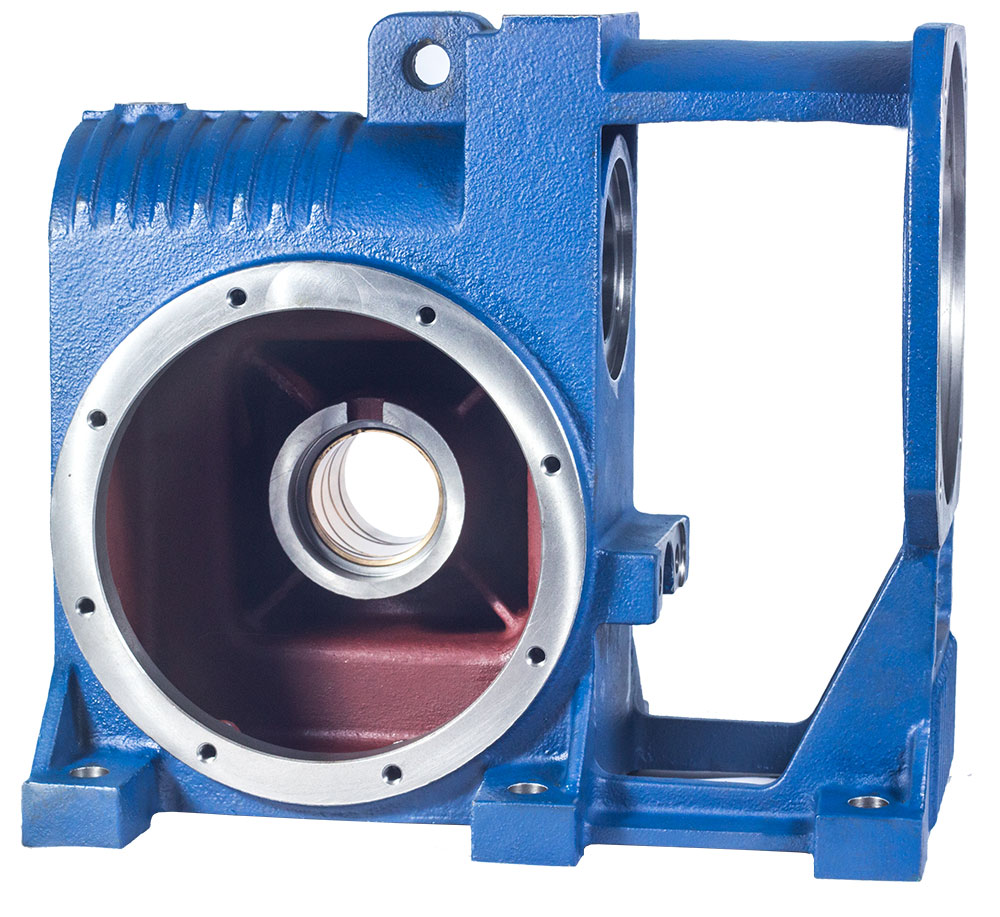

ELEVATOR - GEARED AND GEARLESS HOUSINGS

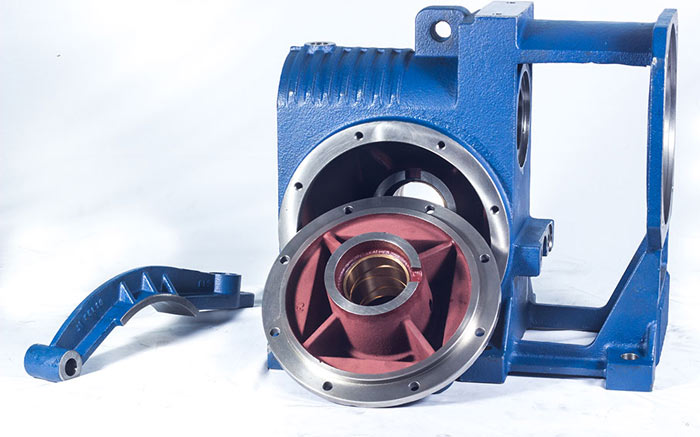

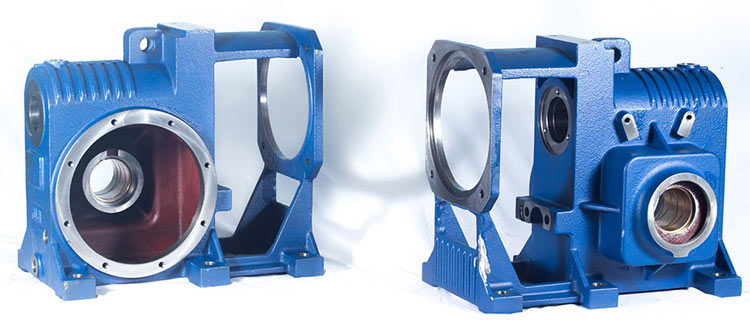

PART DESCRIPTION GEARED HOUSING
RANGE 6 TO 10 PASSENGER
WEIGHT RANGE Upto 100kg
FLATNESS 0.1 mm
CONCENTRICITY 0.02 mm
MATERIAL FG 260

PART DESCRIPTION GEARLESS FRAME
RANGE 4 TO 10 PASSENGER
WEIGHT RANGE 18kg to 60kg
SURFACE FINISH 1.6Ra & 3.2Ra
MATERIAL FG 260
