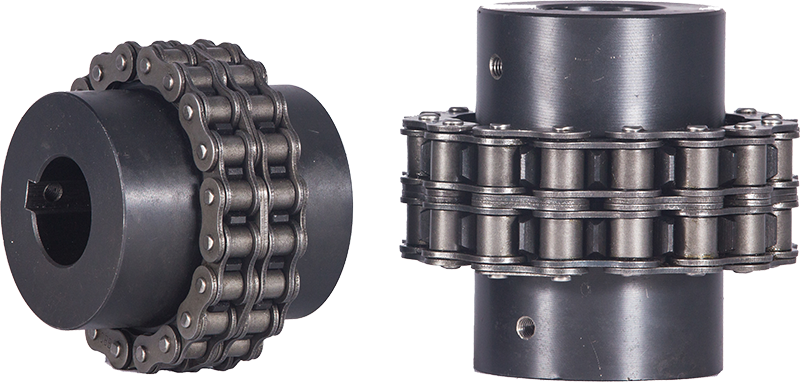

Chain couplings are shaft fittings consisting of 2 rows of roller chains and 2 sprockets. The chains are easy to connect and separate simply by removing a single pin. The structure consists of a chain meshed to the outer teeth of the sprocket, which transmits the torque and is suitable for small-scale power transmission. Vibration and impacts can be absorbed by using chain coupling. Also, a certain range of misalignment is allowed due to aging or when a drive shaft or passive shaft is mounted.
| Torque | 96 Nm - 71338 Nm |
| Product Diameter | 65 mm - 517 mm |
| Bore Diameter | 16 mm - 230 mm |
| Bore Type | Pilot Bore, Finished bore with Keyway |
| Material / Surface Treatment | En-8/C-45 | Blackening |
| Induction Hardening | Case Hardened upto 2-3 mm depth and 45-50 HRC. |
| End User | Agricultural machineries, conveyor systems, bucket elevators, material handling. |
